φ75 Six-Tooth Flat Top PDC Drill Bit Directional Drilling
This drill bit employs a shear-fracturing rock-breaking mechanism. The flat-top cap design ensures even distribution of drill pressure across all teeth, avoiding localized overload and extending the drill bit's lifespan. In directional drilling operations, the short cap structure reduces the distance between the drill bit's center of gravity and the drill string, significantly improving control accuracy and reducing trajectory deviation. The open flow channel design enables rapid removal of hard rock cuttings, reducing the risk of cuttings accumulation and ensuring operational continuity.
We also offer highly customized solutions, allowing for the selection or customization of PDC tooth cutting dimensions and drill bit thread types based on the lithology of the target formation. From cutting structure to connection strength, we comprehensively meet the high requirements for product performance, service life, and operational reliability for all scenarios including Mining Drilling and hard rock drilling that requires the ability to drill through stone.
|
Composite film types |
1304, 1308, 1604, 1608 and other specifications can be customized. |
|
Core advantages |
High cutting efficiency easy-to-control drilling trajectory |
|
Buckle type selection |
Common API specifications, customizable |
|
Applicable fields |
Coalbed methane drilling Mine roadway drilling Hydrological well drilling |
|
Material |
Alloy Steel, Diamond, Carbide |
|
Color |
Gold, Grey, or Customized |
|
Customized services |
Customization is available based on drawings or requirements. |
|

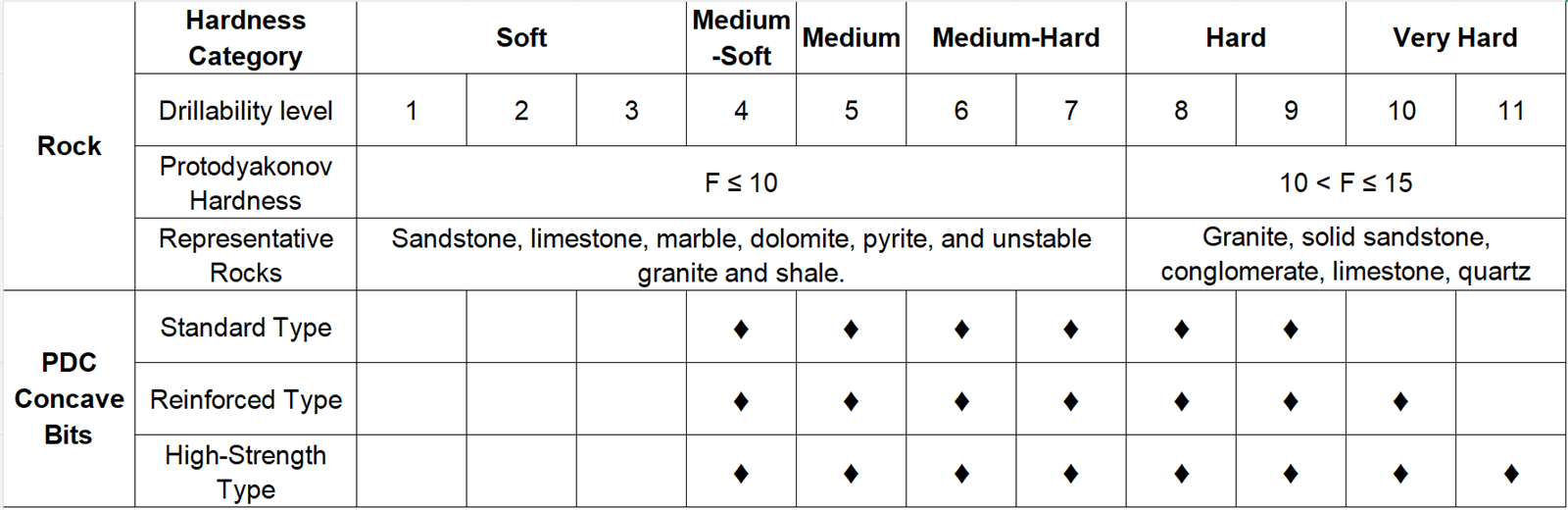

Suitable strata |
Suitable for Sandstone, shale, mudstone |
Each Component
Super hard and wear-resistant
Durable
Sharp cutting edge
Smooth chip removal efficient anti-clogging timely cooling
High wear resistance for diameter maintenance stable wellbore strong impact resistance
FAQ
Q1: How do you guarantee quality?
A: We have an experienced quality control team and a comprehensive testing process. Product manufacturing adheres to international standards such as ISO9001:2008, and every order undergoes 100% rigorous inspection and testing before shipment. We have over 25 years of industry experience.
Q2: What formations are PDC drill bits suitable for?
A: Ideal for drilling in soft to medium-hard formations, such as clay, sandstone, shale, and limestone. For harder or more complex formations, customized tool design recommendations are available.
Q3: What is the lifespan of PDC drill bits?
A: Lifespan is affected by formation hardness, operating parameters, and maintenance conditions. Under similar conditions, our PDC drill bits typically last 2-4 times longer than conventional steel-tooth or tricone drill bits.
